How to install Triofox in private network

Installing Triofox is straightforward. Visit the Triofox partner portal (https://access.triofox.com/) and set up a free trial. It will create a MyTriofox account.

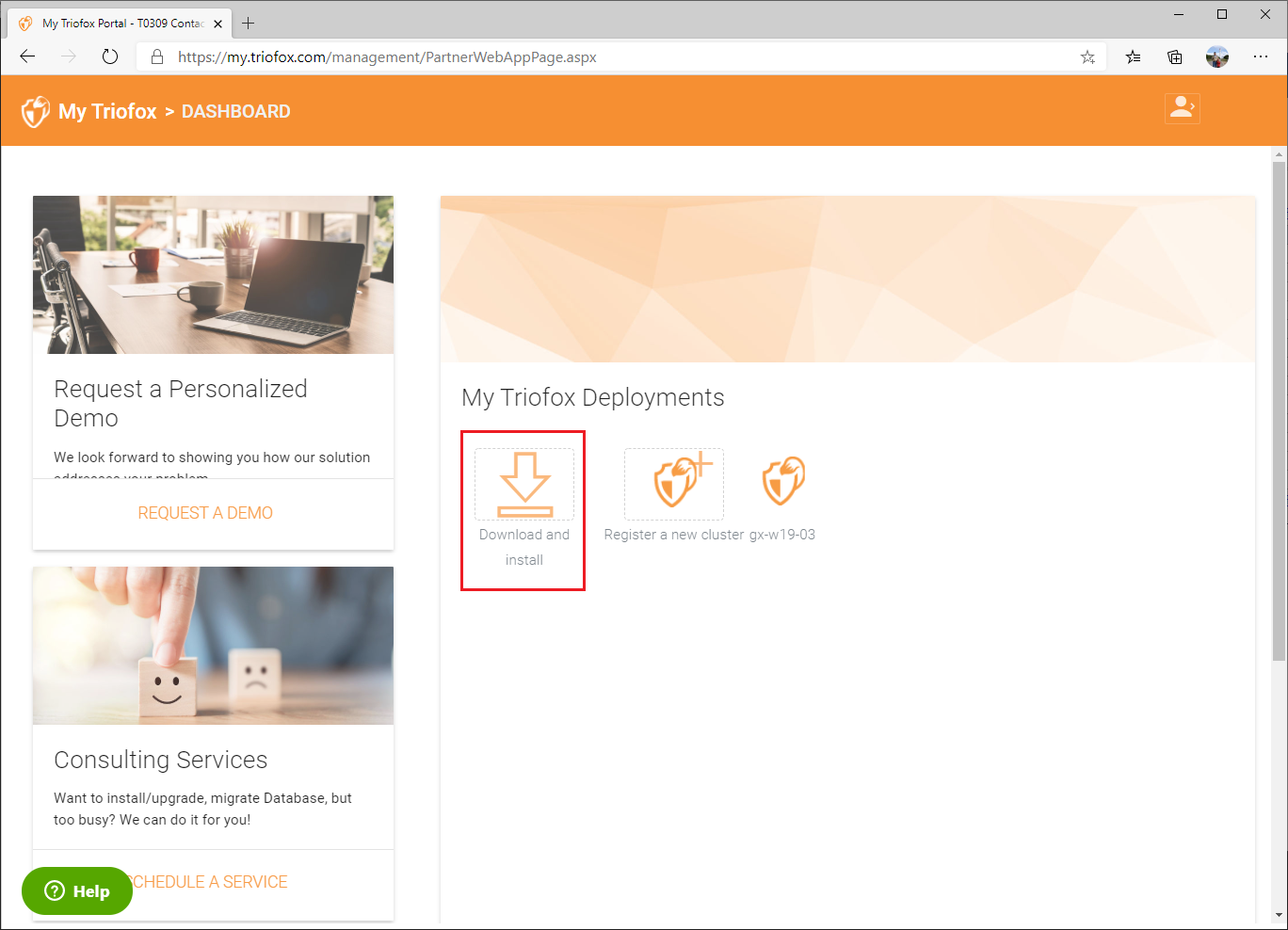

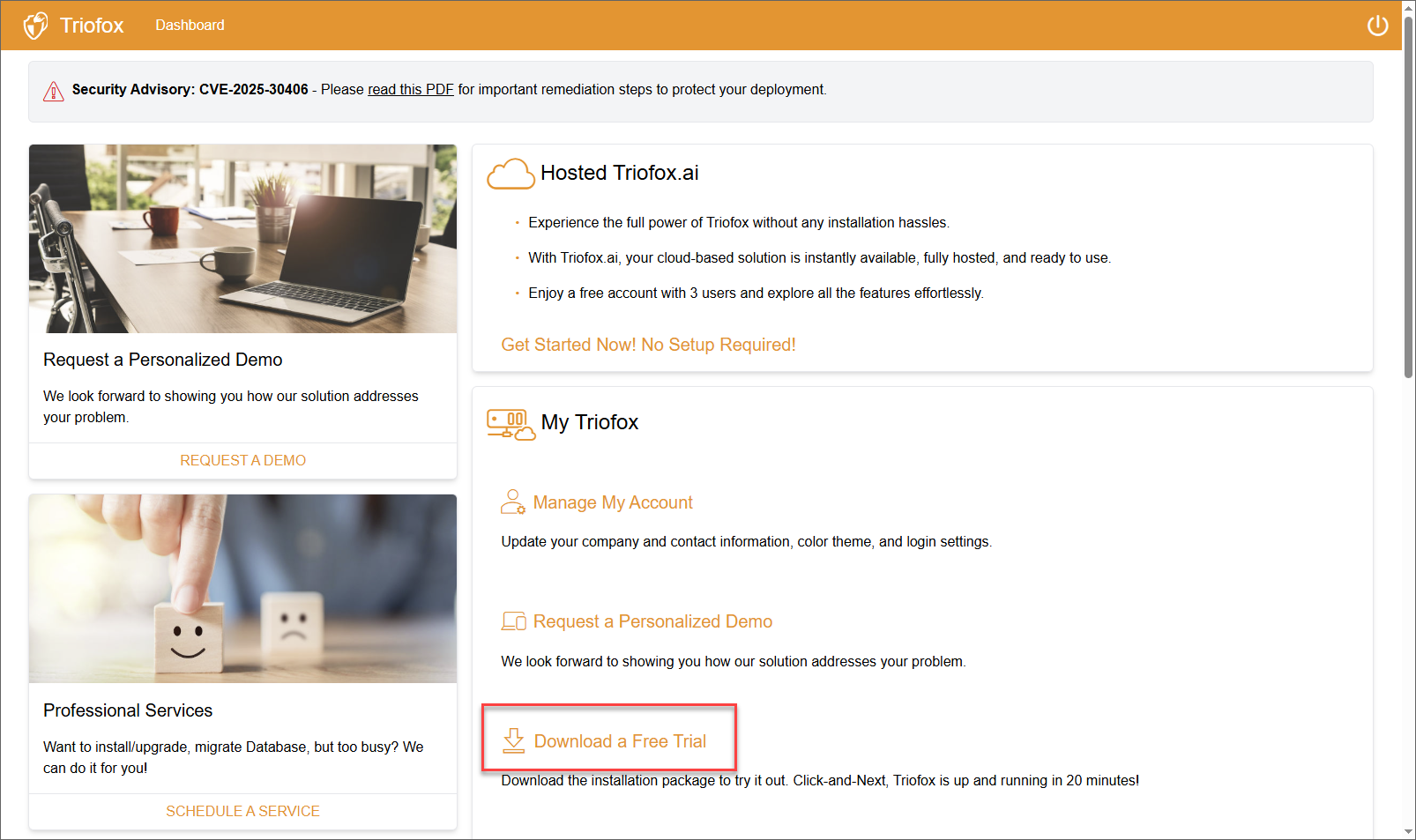

Log in to the portal. Under Dashboard, visit 'Download a Free Trial' and download the web installer.

Run the web installer. It will configure the server, download the installation package, and configure the service for you.

Sometimes the server is in a private network. There is no public internet access. In the scenario, the web installer cannot download the installation package.

To install Triofox, the admin can download the web installer from MyTriofox and copy it to the server. After that, download the installation and upgrade zip files and copy them to the server. For the URLs to download the zip files, please contact support@triofox.com. Our support team will provide the links.

On the Triofox server, store the web installer, the installation zip file, and the upgrade zip file under the same folder. Open the command prompt and cd to the folder. Run the web installer with parameters like below:

TFInstaller.exe PackageUrl:"full path to installation zip" UpgradePackageUrl:"full path to upgrade zip"

** Please stop the following services before applying the installation, and turn the two back on after the installation:

• IIS   ( Command Prompt "run as an admin": iisreset /stop)
• Gladinet Cloud Monitoring Service

For example:

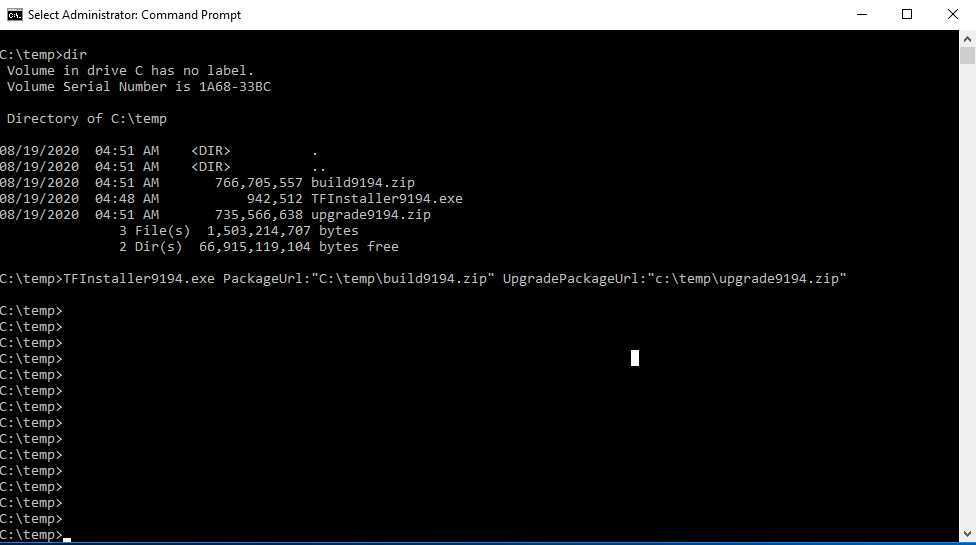

TFInstaller9194.exe PackageUrl:"C:\temp\build9194.zip" UpgradePackageUrl:"c:\temp\upgrade9194.zip"

With the parameter, the web installer will read the installation/upgrade package from the local. There is no need to download them from the cloud.

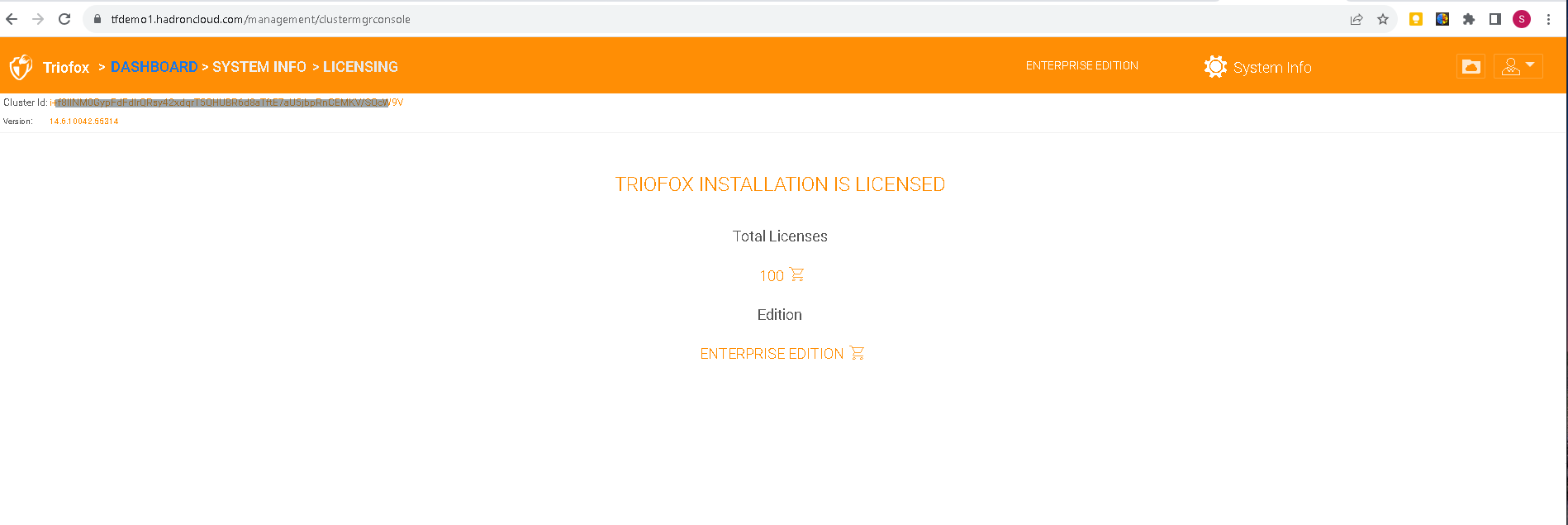

After installation and reboot, set up the Triofox admin and login web portal. It shows the Triofox licenses.

When the Triofox server can access the public internet, it can be registered in the MyTriofox account and licensed from there. The Triofox server will read the license information from MyTriofox. When the Triofox server has no internet connection, it cannot license it from the license server. The only option is to use a license string.

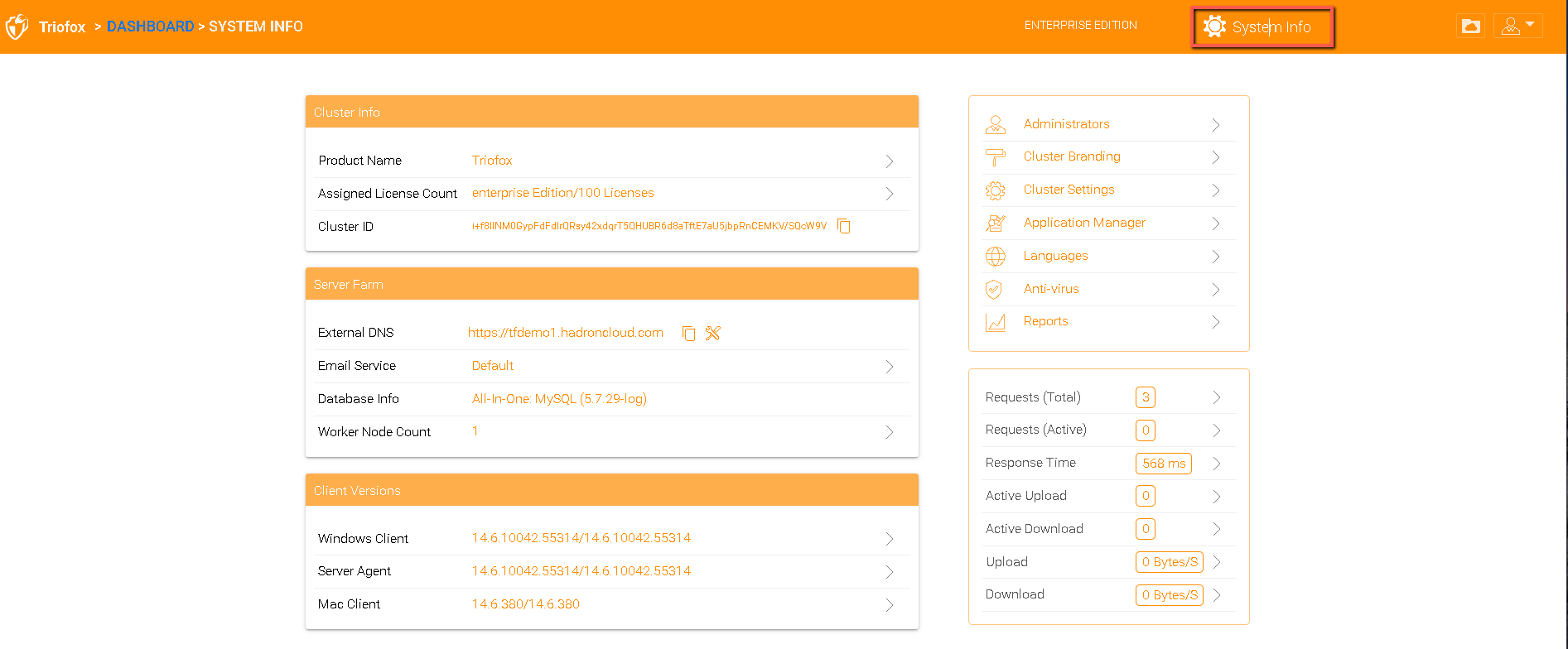

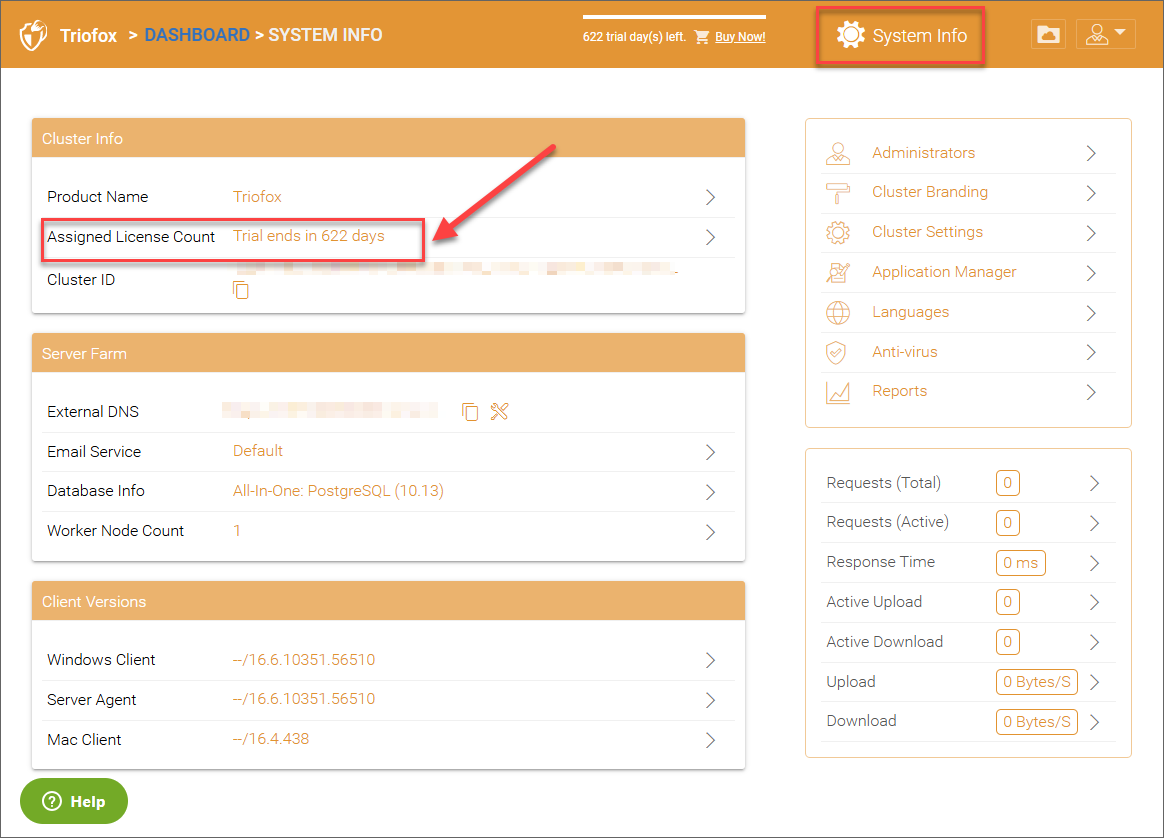

To license the Triofox server, as an admin on the web portal, go to System Info and click on Assigned License Count.

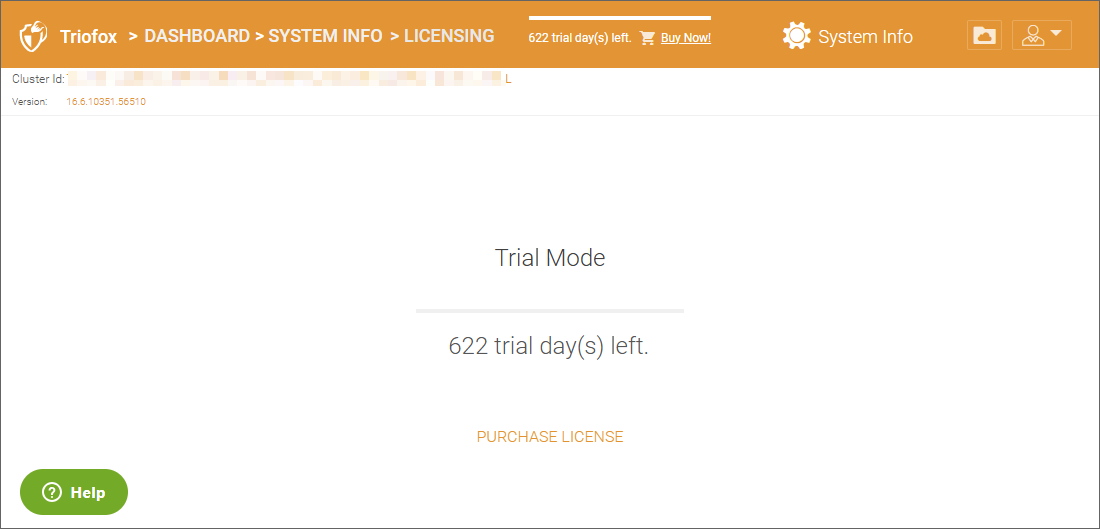

Here, visit Licenses. It shows the cluster's trial information. Here, click 'PURCHASE LICENSE'.

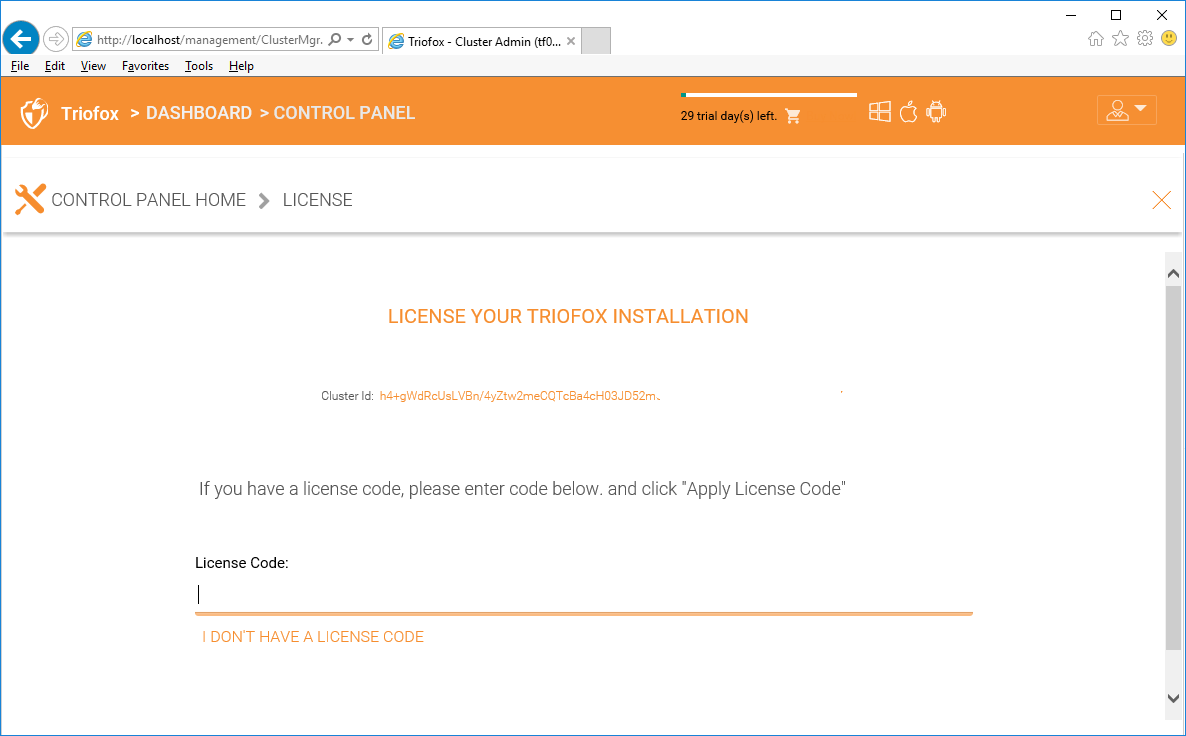

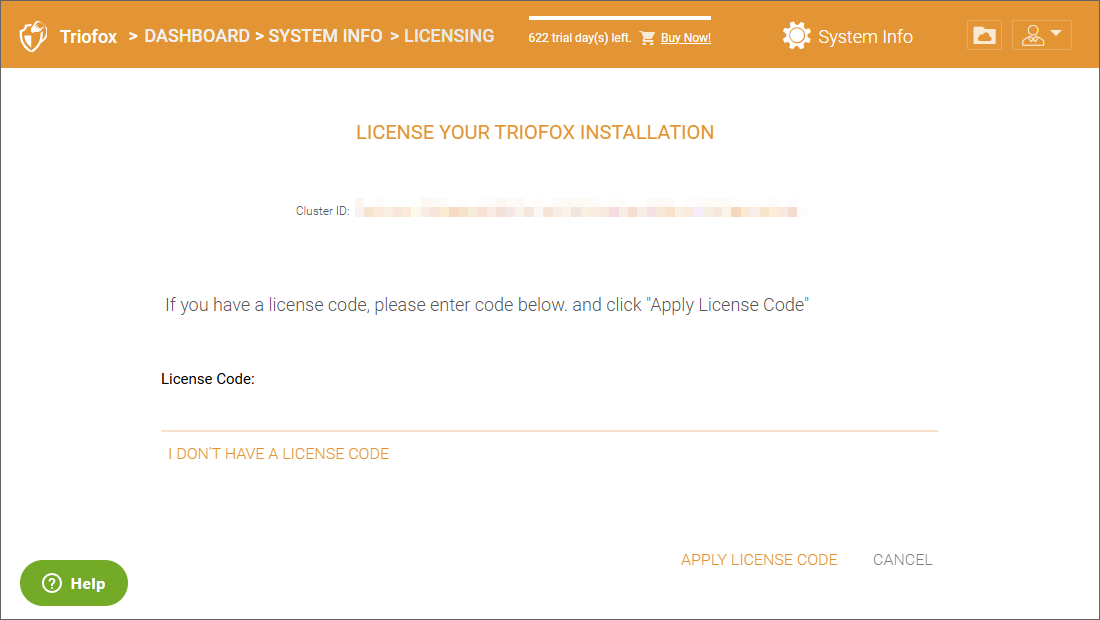

See the option for the license string. The license string can be purchased from the Triofox sales team.
