Capture trace on Triofox via debugview

On a Triofox server or Triofox Windows Client, we can use debugview to capture traces.

• On the Triofox server or Windows Client machine, download Debugview and unzip it https://docs.microsoft.com/en-us/sysinternals/downloads/debugview
• Tune On the trace flag

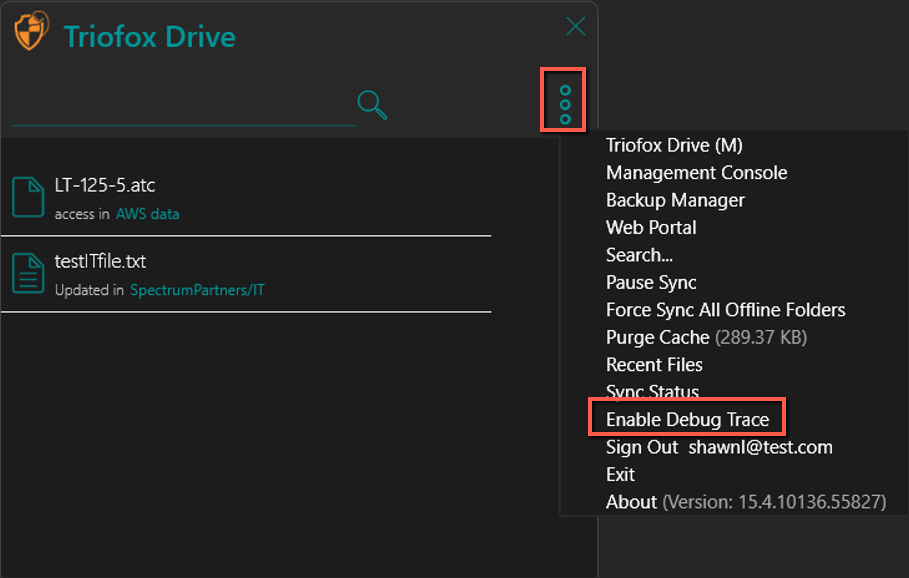

  • Windows Client:

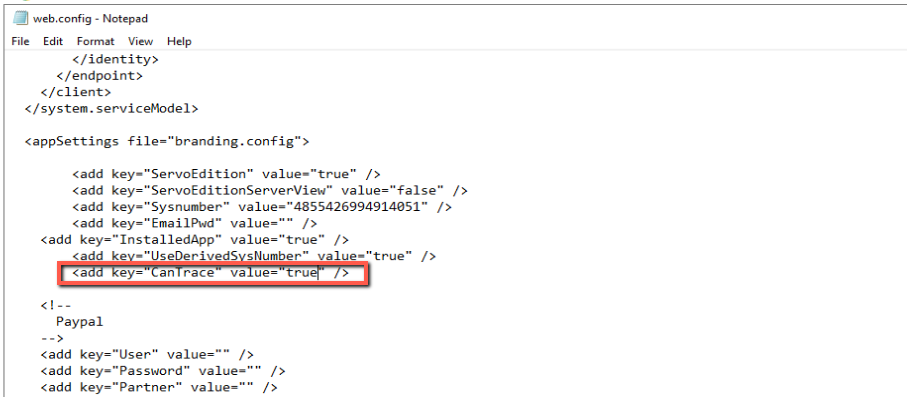

  • Triofox Server: Add a key record "<add key="CanTrace" value="true" />" to C:\Program Files (x86)\Triofox\root\web.config

    After the file is saved, open IIS Manager. Go to Application Pools. Right click the pool 'namespace' and select 'Recycle...'.
• Start Debugview as Administrator.

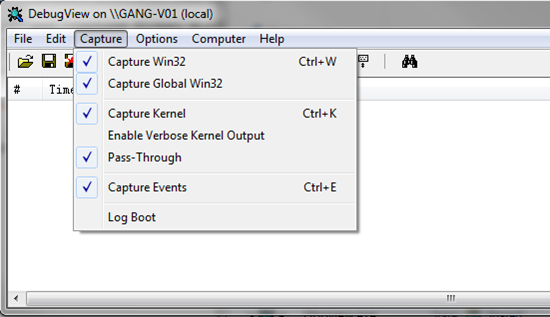

• Under Capture, check Capture Win32, Capture Global Win32 and Capture Kernel

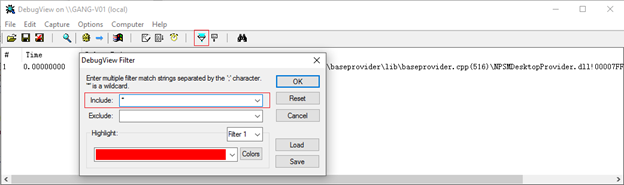

• If support has provided a filter, click the 'Filter/Highlighter' icon, and type in the specified filter in 'Include', to replace the default '*'. Otherwise, keep the default '*'

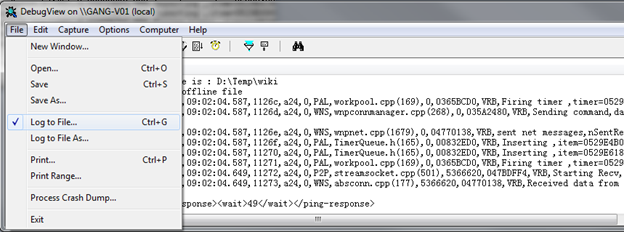

• Under File, select 'Log to File', to write the trace to file

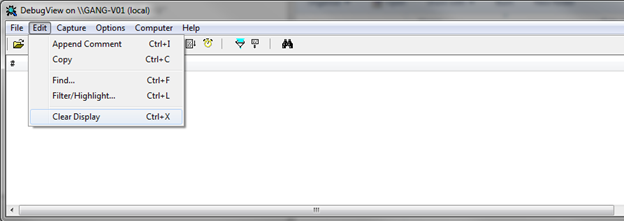

• Under Edit, select 'Clear Display'. It will clear the display on Dbgview

• Run the operation that hit the issue
• Once you can reproduce the issue, stop Debugview
• Send the trace files to Triofox support support@triofox.com
